Introduction

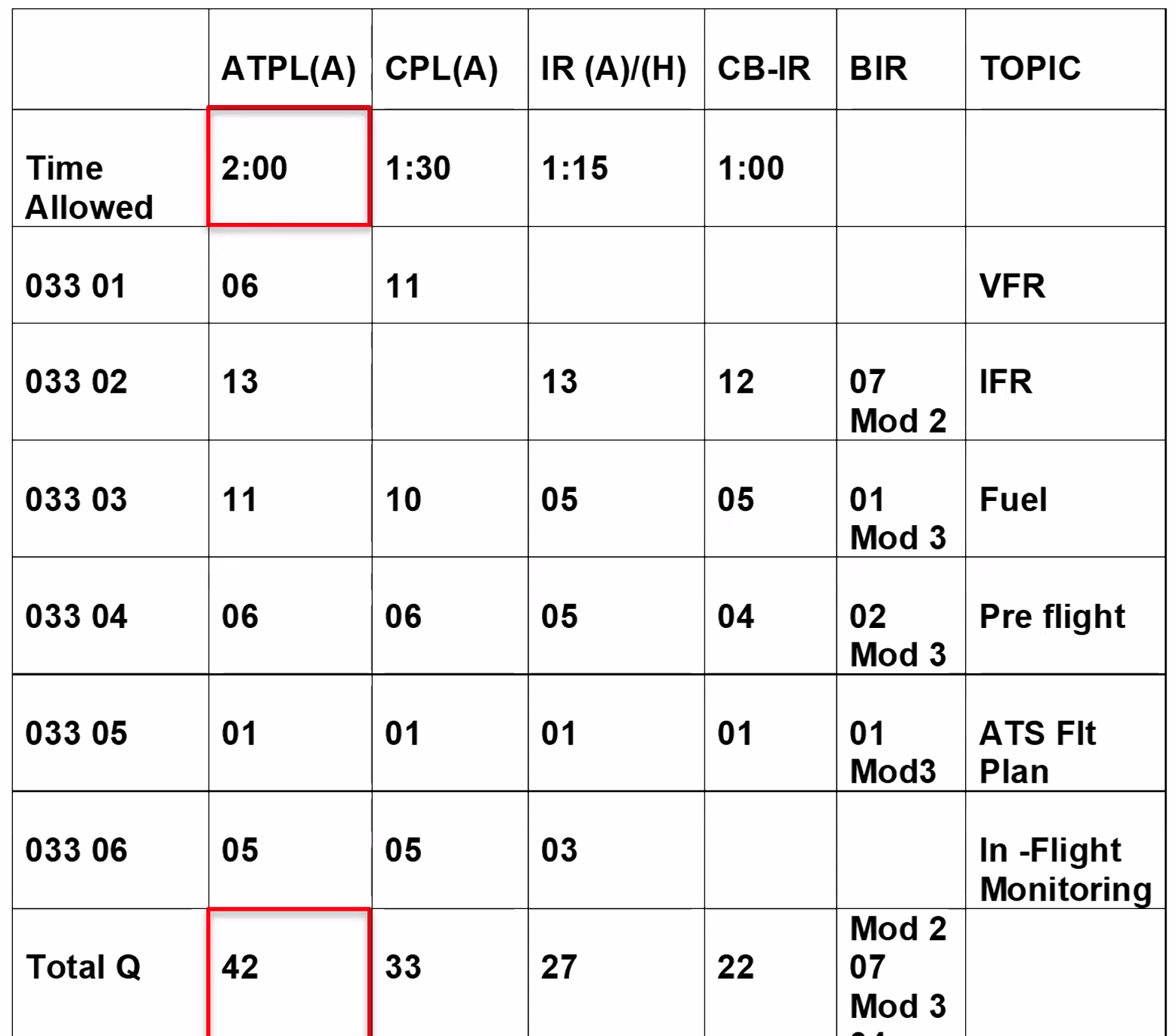

Notes about the breakdown
Prefight planning - NOTAMs etc ATS Flt Plan - Jeppesen contains the majority of what could be asked - so ‘free points’ Fuel & In Flight Monitoring - both subjects are the largest and Fuel policy needs to be known before going in.
Required for the Exam:
GSPRM Jeppesen Training Route Manual - tagging of pages allowed
NM, NGM & NAM
A nautical mile is a unit of distance A nautical ground mile (NGM) is distance travelled over the earth’s surface A nautical air mile (NAM) is the distance travelled through an air mass
NAM = NGM * TAS / GS NGM = NAM * GS / TAS

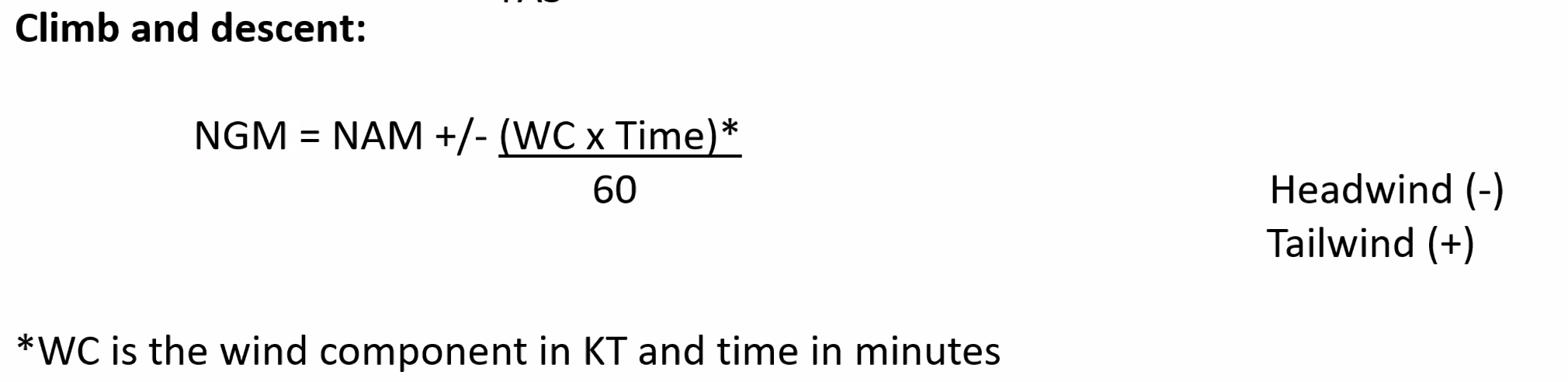

For the climb and descent

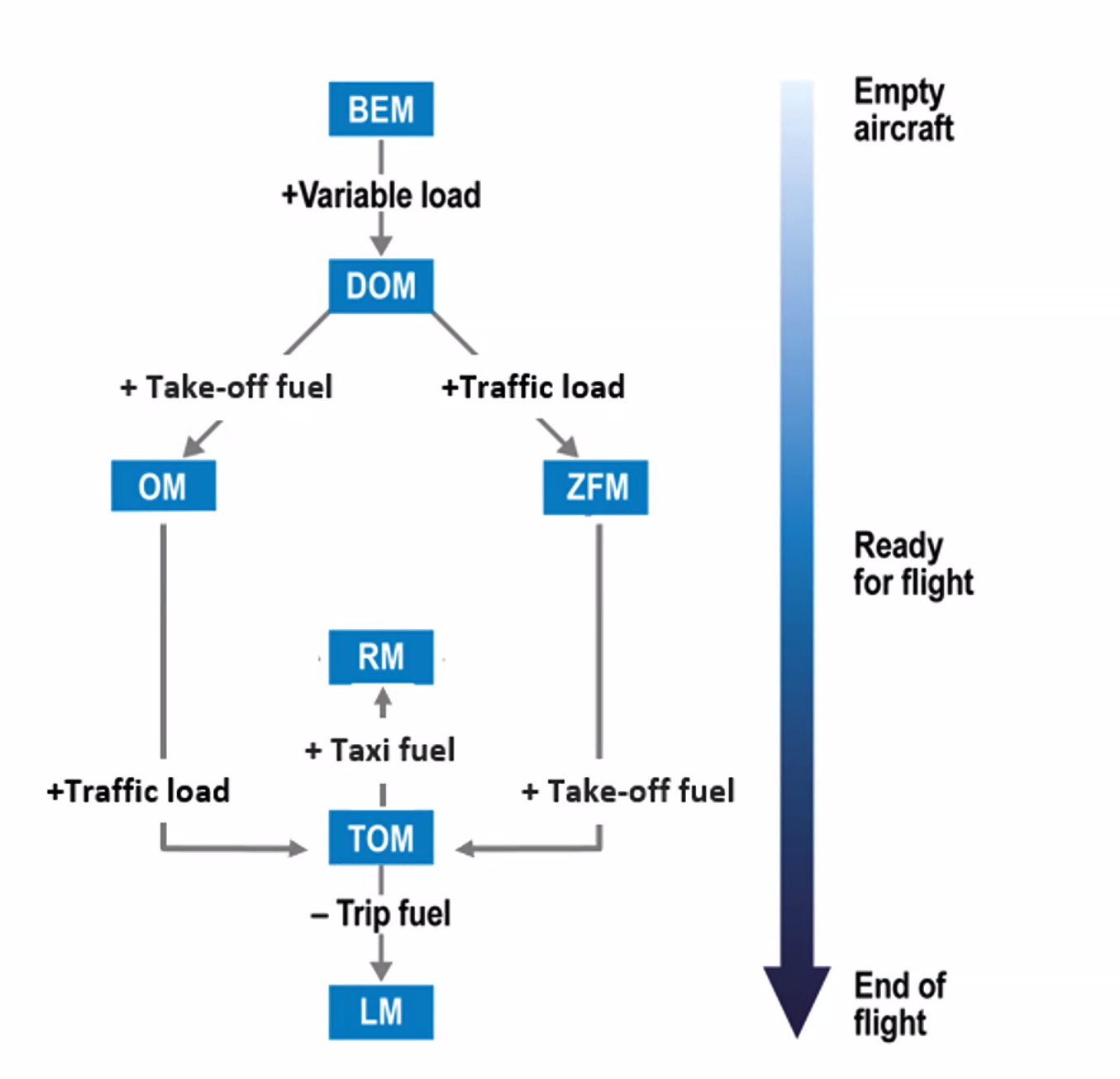

Aircraft Loading

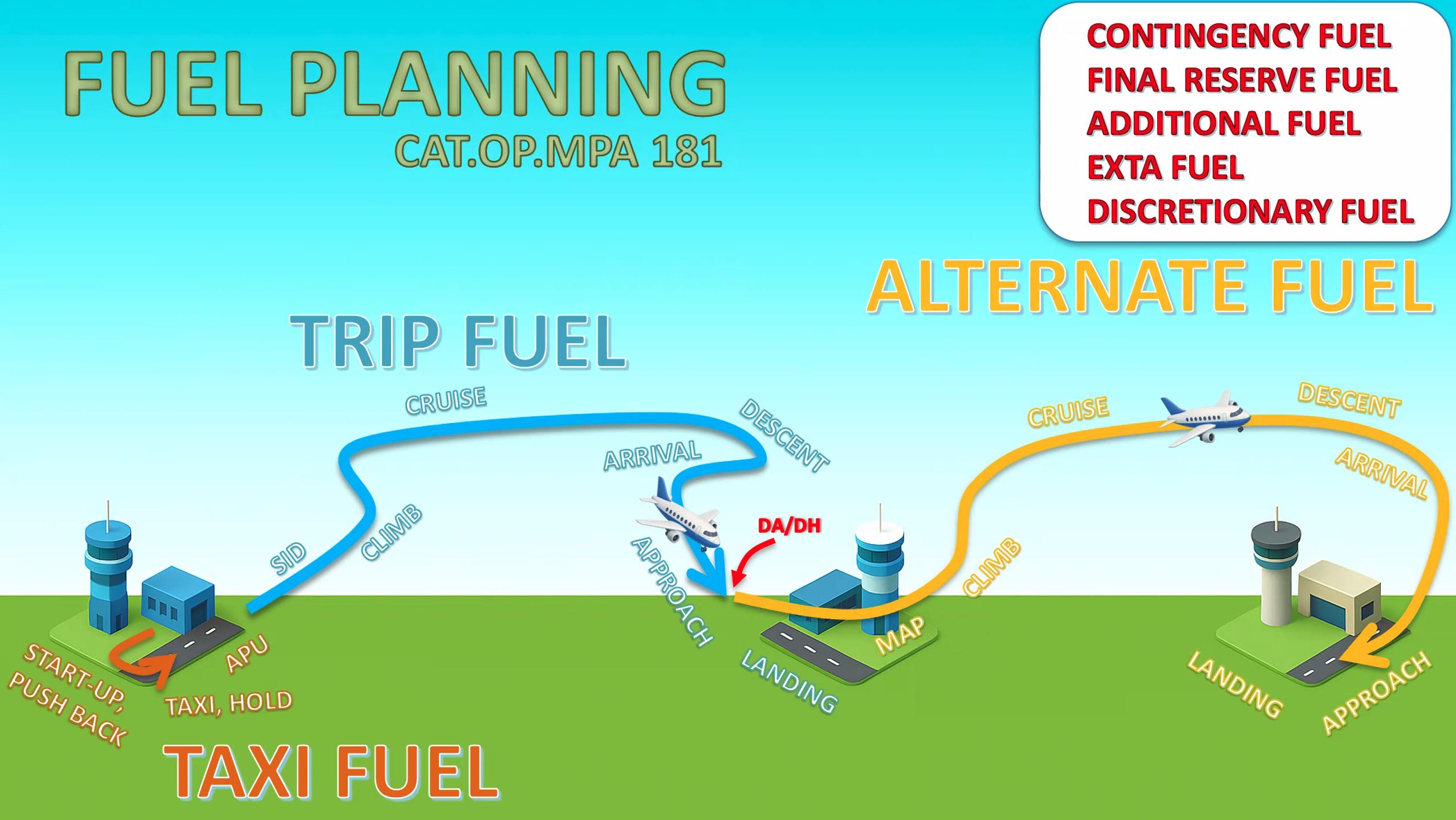

Fuel / Energy Policy - Fuel Schemes
An operator can choose between three different fuel schemes:
Basic Fuel Scheme
‘the raw template’ for what can be considered as part of the fuel plan incl 5% trip fuel contingency.
Basic Fuel Scheme ==with variations==
Individual Fuel Scheme (not examined)
However sometimes questions refer to the Basic Scheme without variations. If there are no variations then it is just the Basic Scheme.
Three key areas must be considered:
- A fuel / energy planning and in flight re-planning policy
- An aerodrome selection policy
- An in-flight fuel/energy management policy
The fuel/energy scheme and any change to it shall require prior approval by the competent authority.
![[CleanShot 2026-07-08 at 13.08.42@2x.png]]
![[CleanShot 2026-07-08 at 13.11.25@2x.png]]
![[CleanShot 2026-07-08 at 13.14.57@2x.png]] ![[CleanShot 2026-07-08 at 13.16.33@2x.png]]
![[CleanShot 2026-07-08 at 13.17.47@2x.png]]
![[CleanShot 2026-07-08 at 13.18.13@2x.png]]
![[CleanShot 2026-07-08 at 13.19.36@2x.png]]
![[CleanShot 2026-07-08 at 13.23.37@2x.png]]
![[CleanShot 2026-07-08 at 13.25.17@2x.png]]
![[CleanShot 2026-07-08 at 13.30.51@2x.png]]
![[CleanShot 2026-07-08 at 13.30.32@2x.png]]
![[CleanShot 2026-07-08 at 13.31.28@2x.png]]
![[CleanShot 2026-07-08 at 13.31.46@2x.png]]
![[CleanShot 2026-07-08 at 13.32.02@2x.png]]
![[CleanShot 2026-07-08 at 13.33.14@2x.png]]
![[CleanShot 2026-07-08 at 13.34.22@2x.png|697]]![[CleanShot 2026-07-08 at 13.35.31@2x.png]] ![[CleanShot 2026-07-08 at 14.00.33@2x.png]]
![[CleanShot 2026-07-08 at 14.07.34@2x.png]]
![[CleanShot 2026-07-08 at 14.15.57@2x.png]]
![[CleanShot 2026-07-08 at 15.15.48@2x.png]] It is the greater value of the two. So if one is 12 and another is 16. You should choose the larger total which is 16.
Tankering
![[CleanShot 2026-07-08 at 15.35.58@2x.png]]
![[CleanShot 2026-07-08 at 15.47.19@2x.png]] ![[CleanShot 2026-07-08 at 15.57.29@2x.png]]
Jeppesen
![[CleanShot 2026-07-09 at 08.40.21@2x.png]]![[CleanShot 2026-07-09 at 08.41.15@2x.png]]
![[CleanShot 2026-07-09 at 08.41.55@2x.png]]
![[CleanShot 2026-07-09 at 08.43.09@2x.png]]
![[CleanShot 2026-07-09 at 08.45.08@2x.png]]
![[CleanShot 2026-07-09 at 09.42.30@2x.png]]
